Lowrance ActiveImaging HD 3-in-1 Transducer

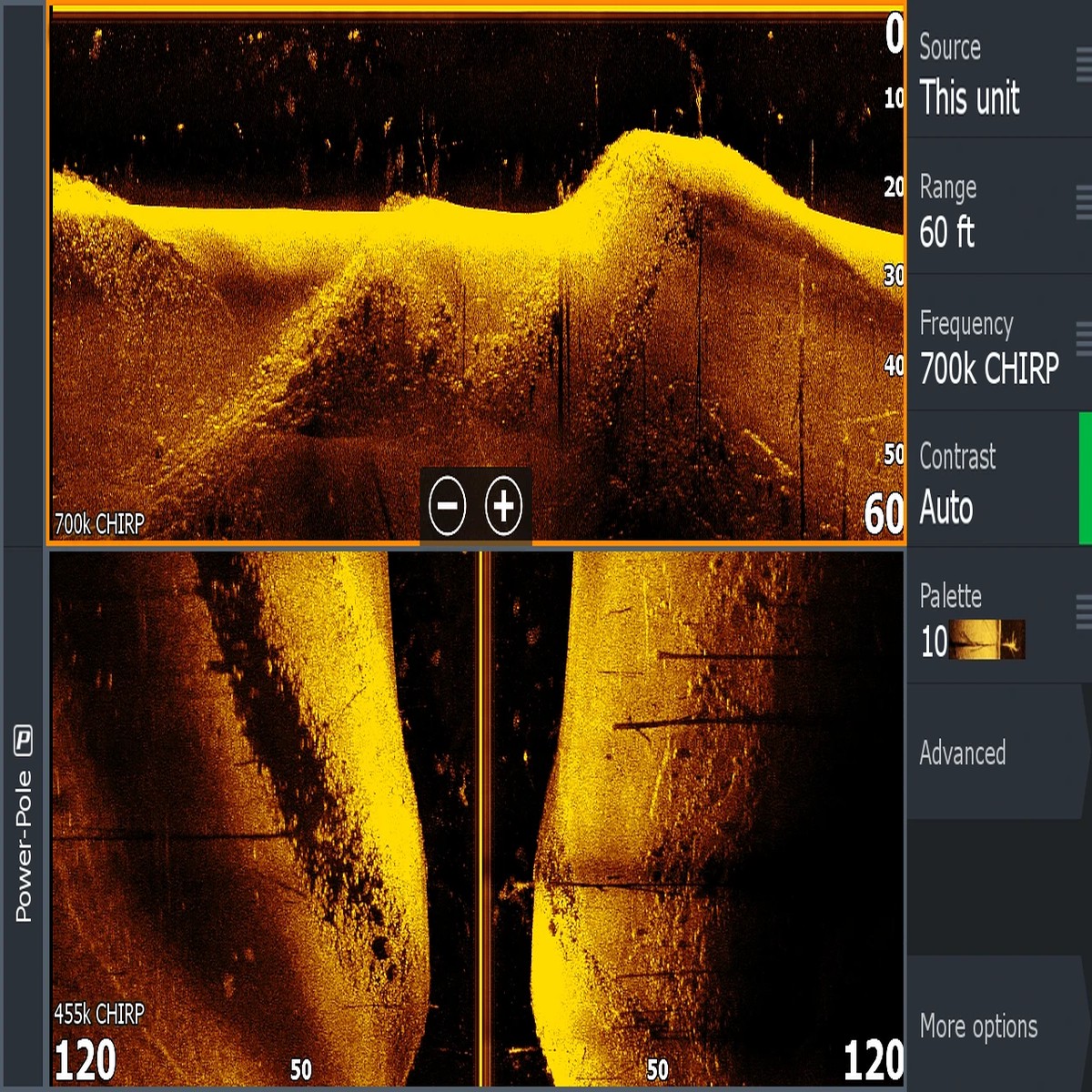

Our clearest sonar ever, Active Imaging HD delivers the highest-definition views of Lowrance CHIRP, SideScan and DownScan Imaging. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.FishReveal Get the best of Lowrance CHIRP sonar and DownScan Imaging on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.Designed for ClarityThe Active Imaging HD transducer not only delivers three key sonar technologies Lowrance CHIRP, SideScan and DownScan Imaging in one convenient package, but also features a new transducer design that boosts signal clarity.Key FeaturesHigh definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structureLowrance CHIRP with superb clarity and target separationFishReveal DownScan view makes fish identification easySupports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequenciesSmart transducer design boosts signal clarityCompatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displaysSpecificationsElectricalHumidity60C, 95% relative humidity (RH) for 18 hoursEnvironmentOperating Temperature Range5F to 131F (-15C to 55C )Shock and Vibration100,000 cycles of 20 GStorage Temperature Range-22F to 158F (-30C to 70C )Waterproof ratingIP67PhysicalDimensions (W x H x D)#NAME?Mounting TypeTransducer: Bracket MountWeightTransducer: 2.67 lbs (1.21 kg)RadarFrequenciesCHIRP: High CHIRP Medium CHIRP Broadband: 83 kHz 200 kHz Active Imaging HD: SideScan: Low CHIRP: 455 kHz (445 kHz – 495 kHz) High CHIRP: 1075 kHz (1065 kHz – 1115 kHz) DownScan: Low CHIRP: 700 kHz (690 kHz – 740 kHz) High CHIRP: 1200 kHz (1190 kHz – 1240 kHz)Max Depth2D Sonar: Broadband/CHIRP: 200 kHz/High CHIRP – 500′ (152.4m) 83 kHz/Medium CHIRP – 1000′ (304.8m) SideScan: High Frequency: 150′ (45.72m) Low Frequency: 300′ (91.44m) DownScan: High Frequency: 150′ (45.72m) Low Frequency: 300′ (91.44m)OtherWarranty Period1 Year + 4 additional years of upgrade options Totaling 5 yearsInterfaceDirect Connect to: HDS Pro S3100 Ethernet to: *HDS Live *Elite FS * Requires S3100 Module
