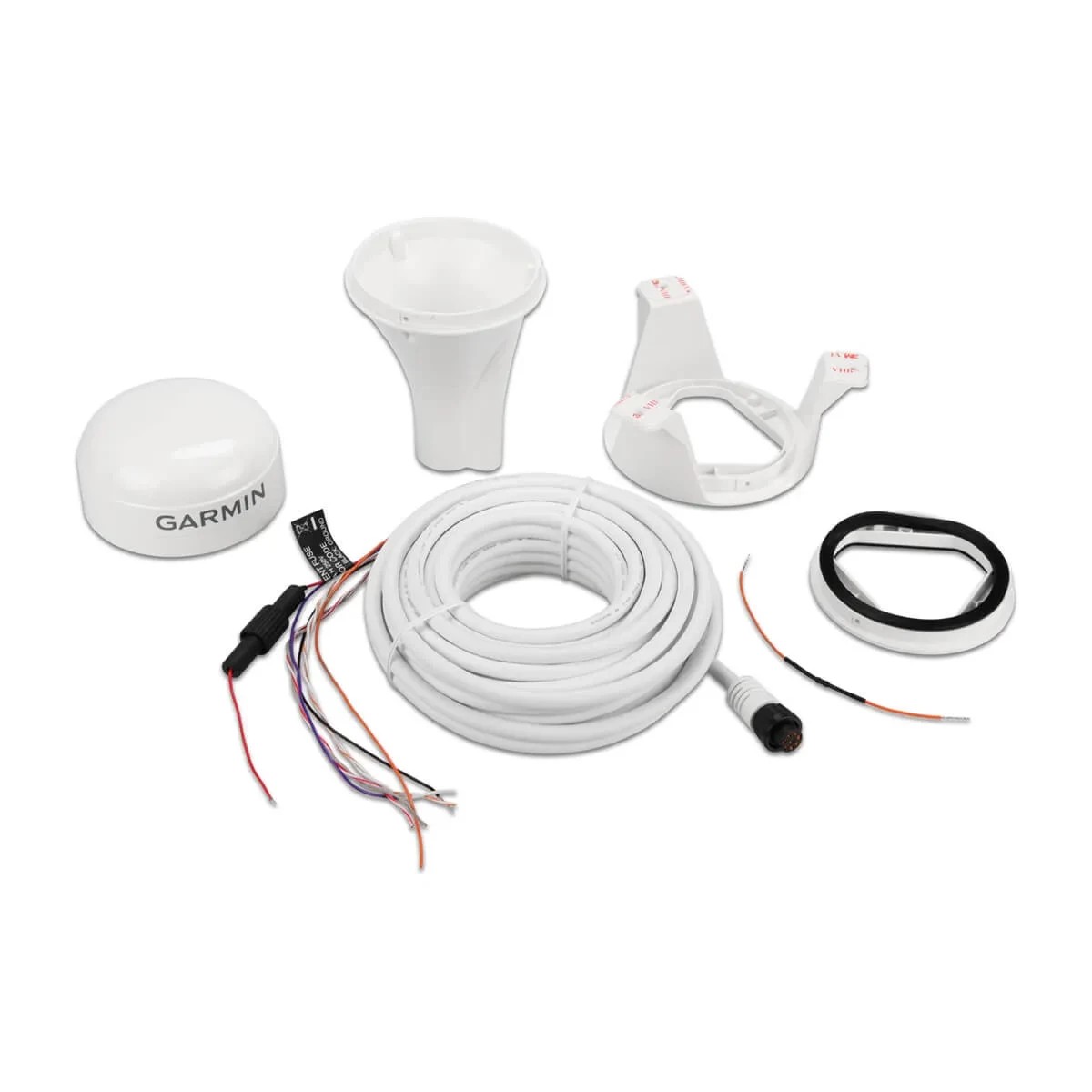

Garmin GPS 24xd HVS NMEA 0183 Position Receiver & Heading Sensor

PRECISE POSITION AND HEADING DATA FOR YOUR MARINE SYSTEMThe Garmin GPS 24xd HVS combines a high-sensitivity multi-band GNSS receiver with an integrated magnetic heading sensor, providing accurate position and vessel heading information even when travelling at low speed.Designed for installations using NMEA 0183, the GPS 24xd HVS can supply navigation data to compatible chartplotters, multifunction displays, instruments, autopilots and other marine equipment.MULTI-BAND GNSS ACCURACYMulti-band GNSS technology uses signals from multiple satellite frequencies to reduce errors caused by atmospheric interference and reflected signals. This provides position accuracy of less than 1 metre under typical operating conditions. INTEGRATED MAGNETIC HEADING SENSORThe built-in heading sensor provides magnetic heading accuracy within approximately 3 degrees. Reliable heading information helps stabilise chart displays and supports functions such as radar overlay and MARPA, including when the vessel is stationary or moving slowly. FAST 10 HZ POSITION UPDATESA position update rate of up to 10 times per second provides smooth and responsive position, speed and time information to connected equipment. The unit operates at 38,400 baud by default and can be configured for 4,800 baud and a 1 Hz update rate where required. EXPANDED SATELLITE SYSTEM SUPPORTThe receiver supports multiple global navigation satellite systems, helping maintain reliable positioning in challenging marine environments where the view of the sky may be partially obstructed.BUILT FOR MARINE INSTALLATIONSThe IPX7-rated housing is designed to withstand exposure to rain, spray and demanding marine conditions. Multiple mounting options allow the antenna to be installed in a suitable position with a clear view of the sky.FeaturesMulti-band GNSS position receiverIntegrated magnetic heading sensorNMEA 0183 interfacePosition accuracy of less than 1 metre under typical conditionsMagnetic heading accuracy within approximately 3 degreesPosition update rate up to 10 HzDefault communication speed of 38,400 baudConfigurable 4,800 baud and 1 Hz operationSupports chart stabilisationSupports radar overlay and MARPA functionsHigh-sensitivity satellite trackingIPX7 water ratingMultiple mounting optionsWhite marine housingSpecificationsSpecificationDetailsProductGarmin GPS 24xd HVSPart Number010-02316-00ConnectionNMEA 0183 HVSPosition Update Rate1 Hz, 5 Hz or 10 HzDefault Update Rate10 HzDefault Baud Rate38,400 baudAlternative Baud Rate4,800 baudPosition AccuracyLess than 1 metre, 88% typicalVelocity Accuracy0.1 knot RMS at steady stateHeading AccuracyApproximately 3 degreesNMEA ProtocolNMEA 0183Diameter96.1 mmHeight49.5 mmWeight201 gWater RatingIPX7ColourWhiteData InterfaceDifferential NMEA 0183 serialCable LengthApproximately 9 metresIn the BoxGarmin GPS 24xd HVS antenna and receiverNMEA 0183 power/data cableSurface-mount hardwarePole-mount hardwareUnder-deck mounting hardwareBaud-rate configuration resistorInstallation instructionsDownloadsInstallation Instructions Technical Specifications .input-wrapper a { text-decoration: none; / Removes underline / background-color: transparent; / Ensures no background color / } .input-wrapper a:hover { text-decoration: underline; / Adds underline on hover / background-color: transparent !important; / Removes grey highlight / }
