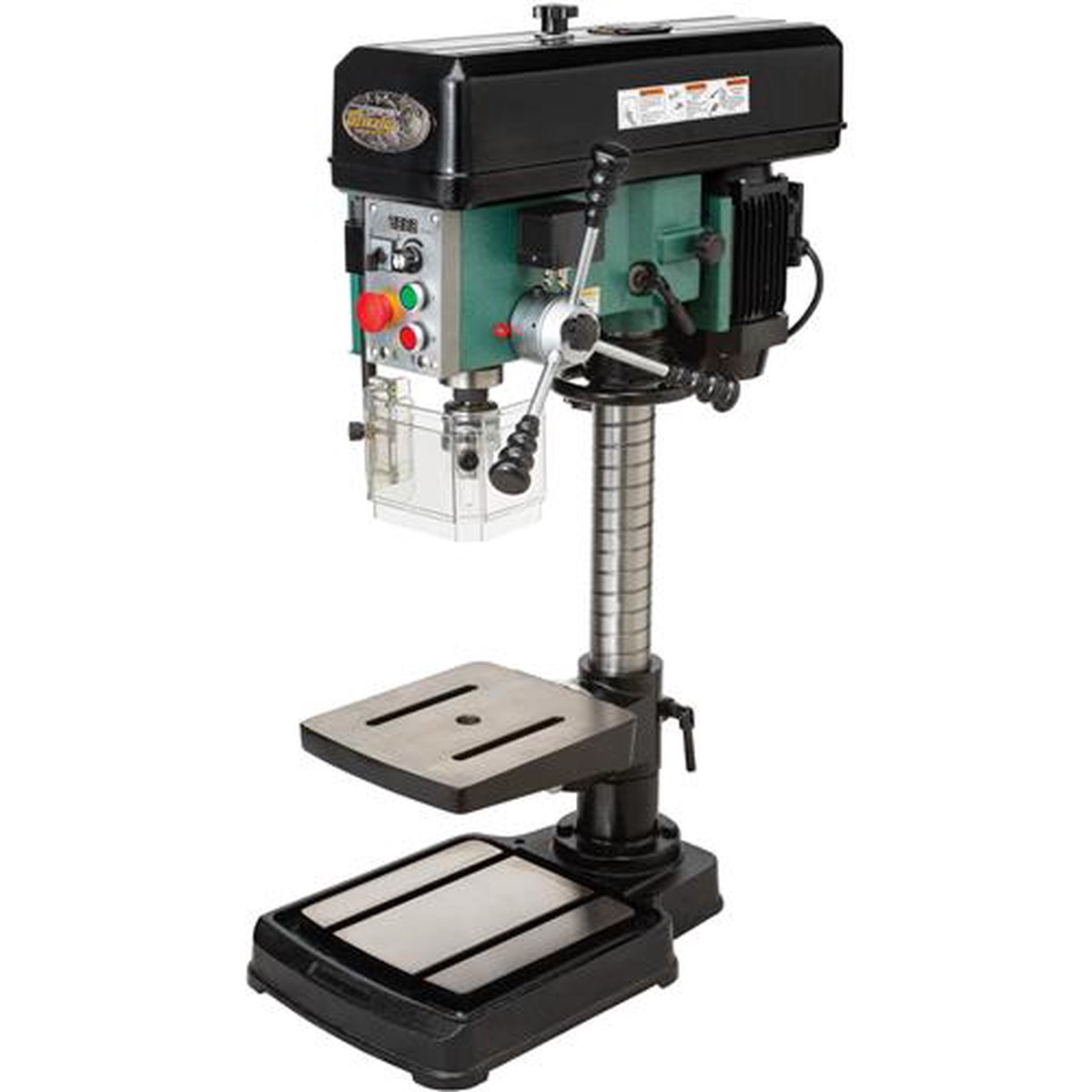

16″ Benchtop Variable-Speed Tapping Drill Press

T33962 16″ Benchtop Variable-Speed Tapping Drill Press

A specialized drill press with tapping capability to streamline threading processes.

This benchtop drill press provides the additional functionality you need to cut your desired thread patterns, offering a 1/2″ tapping capacity.

With two variable-speed spindle speed ranges and a digital readout, it is simple to adjust the speed based on your specific needs. The spindle has auto reverse for tapping functions.

The 360 headstock makes positioning easy, headstock height is easily adjustable, and the cast-iron base gives stability during use.

The Class II laser gives the precision required for every project by preventing alignment mistakes no guesswork involved.

A built-in LED work light below the headstock of this variable-speed drill press provides helpful extra illumination.

The square chuck safety guard comes with a micro switch that shuts the drill press off if the guard is opened. The clear chip guard protects the user from debris.

It also offers a belt cover safety switch for additional safety during operation.

SPECIFICATIONS

• Required power source: 120V, single-phase, min. 15A circuit
• Motor: 3/4 HP, 120V
• Swing: 16″
• Spindle taper: MT#2
• Spindle speed: Variable, 50-600, 600-2100 RPM
• Max. distance from spindle to table: 12-9/16″
• Drill chuck: 5/8″, JT3 keyed
• Drilling capacity: 9/16″ steel
• Tapping capacity: 1/2″
• Table size: 9-3/4″ x 11-1/8″
• Table tilt: 45 left/right
• Table swivel around column: 360
• Footprint: 20-1/2″ x 14″
• Overall dimensions: 16″ W x 28-1/2″ D x 39-1/2″ H
• Approximate shipping weight: 204 lbs.

FEATURES

• Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
• Two variable-speed spindle speed ranges
• Reversible spindle rotation
• Adjustable headstock height
• Adjustable Class II laser guide
• Spindle speed digital readout
• Built-in LED work light
• Square chuck guard with micro switchDial-type depth stop
• Clear chip guard
• Belt cover safety switch
• Grizzly owner’s manuals are produced by our U.S.-based Technical Documentation Department and are packed with useful information.
• Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T33962 comes with a 1-year warranty.
• Made in an ISO 9001 factory
